Antenna Kiwi Polarized ʻElua 20dBi Typ.Loaʻa, 75GHz-110GHz Laulā alapine RM-DPHA75110-20
ʻO kaRM-DPHA75110-20ʻO ia kahi hui antenna kīwī piha, pālua-polarized, WR-10 e hana ana ma ke alapine o 75 a 110 GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Ke kākoʻo nei ka RM-DPHA75110-20 i nā kuhikuhina hawewe a me ke ākea a loaʻa iā ia ka 35 dB cross-polarization suppression, kahi loaʻa nominal o 20 dBi ma ke kikowaena waena, kahi 3db beamwidth maʻamau o 16degere ma ka E-plane, he 3db beamwidth maʻamau o 18 degere ma ka mokulele H. ʻO ka hoʻokomo ʻana i ka antenna he alakaʻi nalu WR-10 me kahi flange threaded UG-385/UM.
________________________________________________________
Ma ka waihona: 3 ʻāpana
-
Antenna Kiwi Polarized ʻElua 18dBi Typ.Gain, 75GHz-110GHz Laulā alapine RM-DPHA75110-18
ʻO kaRM-DPHA75110-18ʻO ia kahi hui antenna puʻupuʻu piha, pālua-polarized, WR-10 e hana ana ma ka laina alapine o 75 a 110GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Kākoʻo ka RM-DPHA75110-18 i ka hoʻonohonoho ʻana i ka nalu a me ka pae a loaʻa iā 40 dB cross-polarization maʻamau.kaawale, he loaʻa nominal o 18 dBi ma ke alapine waena, he 3db beamwidth maʻamau o22degere ma kaH-plane, he 3db beamwidth maʻamau o33degere ma kaV-palahele. ʻO ka hoʻokomo ʻana i ka antenna he alakaʻi nalu WR-10 me kahi flange threaded UG-387/UM.
-

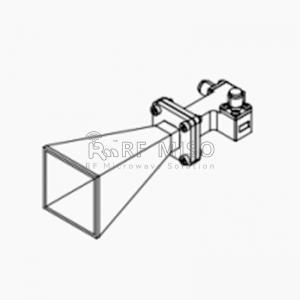

Antenna Kiwi Polarized ʻElua 21dBi Typ.Loaʻa, 42GHz-44GHz Laulā pinepine RM-DPHA4244-21
ʻO kaRM-DPHA4244-21 he hui antenna piha, pālua-polarized, horn e hana ana ma ke alapine o42i44GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. ʻO ka RM-DPHA4244-21he mea maʻamau60dB-polarizationkaawale, ka loaa nominal o 21dBi ma ke alapine waena, he 3db beamwidth maʻamau o 13.82degere ma ka E-plane, he 3db beamwidth maʻamau o17.36degere ma ka mokulele H.
-
ʻElua Antenna Kiwi Polarized 16dBi Typ.Gain, 60-90GHz Laulā alapine RM-DPHA6090-16
ʻO kaRM-DPHA6090-16ʻO ka hui pū ʻana o ka puʻupuʻu puʻupuʻu WR-12, ʻelua polarized, e hana ana ma ke alapine o 60 a 90GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Kākoʻo ka RM-DPHA6090-16 i ka hoʻonohonoho ʻana i ka nalu a me ka hoʻokalakupua a loaʻa iā 35 dB cross-polarization maʻamau.kaawale, he loaʻa nominal o 16 dBi ma ke alapine waena, he 3db beamwidth maʻamau o28degere ma ka E-plane, he 3db beamwidth maʻamau o33degere ma ka mokulele H. ʻO ka hoʻokomo ʻana i ka antenna he alakaʻi nalu WR-12 me kahi flange kaula UG-387/UM.
________________________________________________________
Ma ka waihona: 3 ʻāpana
-

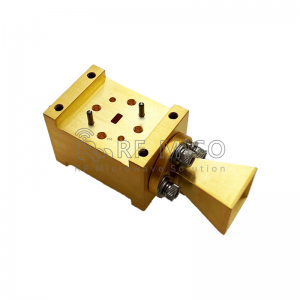

ʻElua Antenna Kiwi Polarized 18dBi Typ.Gain, 50-75GHz Laulā alapine RM-DPHA5075-18
ʻO kaRM-DPHA5075-18ʻO ia kahi hui antenna puʻupuʻu piha, pālua-polarized, WR-15 e hana ana ma ke alapine o 50 a 75 GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Kākoʻo ka RM-DPHA5075-15 i ka hoʻonohonoho ʻana i ka nalu a me ka pae a loaʻa iā 35 dB cross-polarization maʻamau.kaawale, he loaʻa nominal o 18 dBi ma ke alapine waena, he 3db beamwidth maʻamau o 28 degere ma ka E-plane, he 3db beamwidth maʻamau o 33 degere ma ka H-plane. ʻO ka hoʻokomo ʻana i ka antenna he alakaʻi nalu WR-15 me kahi flange threaded UG-387/UM.
________________________________________________________
Ma ka waihona: 10 ʻāpana
-
ʻElua Antenna Kiwi Polarized 17dBi Typ.Gain, 33-50GHz Laulā alapine RM-DPHA3350-17
ʻO kaRM-DPHA3350-17ʻO ka hui pū ʻana o ka puʻupuʻu puʻupuʻu WR-22 e hana ana ma ke alapine o 33 a 50GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Kākoʻo ka RM-DPHA3350-17 i ka hoʻonohonoho ʻana i ka nalu a me ka pae a loaʻa iā 35 dB cross-polarization maʻamau.kaawale, he loaʻa nominal o 17 dBi ma ke alapine waena, he 3db beamwidth maʻamau o 28 degere ma ka E-plane, he 3db beamwidth maʻamau o 33 degere ma ka H-plane. ʻO ka mea hoʻokomo i ka antenna he alakaʻi nalu WR-22 me kahi flange kaula UG-387/UM.
________________________________________________________
Ma ka waihona: 5 ʻāpana
-

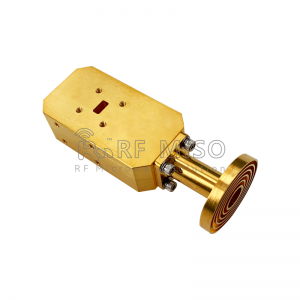

Antenna Kiwi Polarized ʻElua 10dBi Typ.Loaʻa, 24GHz-42GHz Laulā alapine RM-DPHA2442-10
ʻO kaRM-DPHA2442-10ʻO ka hui pū ʻana, pālua-polarized, WR-28 choke flange feed horn antenna hui e hana ana ma ke alapine o 24 a 42GHz. Hāʻawi ka antenna i kahi mea hoʻololi ʻano orthogonal i hoʻohui ʻia e hāʻawi i kahi kaʻawale awa kiʻekiʻe. Kākoʻo ka RM-DPHA2442-10 i ka hoʻonohonoho ʻana i ka nalu a me ka pae a loaʻa iā 35 dB cross-polarization maʻamau.Kaʻawale, he loaʻa nominal o 10 dBi ma ke alapine waena, he 3db beamwidth maʻamau o 60 degere ma ka E-plane, he 3db beamwidth maʻamau o 60 degere ma ka H-plane. ʻO ka hoʻokomo ʻana i ka antenna he alakaʻi hawewe WR-28 me kahi flanges UG-599/UM a me nā lua 4-40 threaded.
________________________________________________________
Ma ka waihona: 2 ʻāpana
-

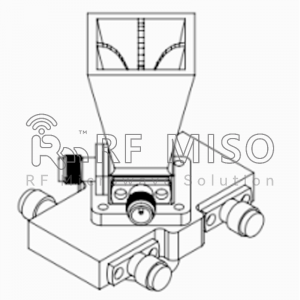

ʻElua Polarized Horn Antenna 12dBi Typ. Loaʻa, 18-40GHz Laulā Alapine RM-DCPHA1840-12
RF MISO'sHoʻohālikeRM-DCPHA1840-12 he pālua poepoe polarized horn antenna e hana ana mai18 to 40GHz, Hāʻawi ka antenna12 dBi waiwai maʻamau. ʻO ka antenna VSWRlalo 2. ʻO ka antenna RF nā awa2.92-wahine coaxial mea hoʻohui. Hiki ke hoʻohana nui ʻia ka antenna i ka ʻike EMI, orientation, reconnaissance, loaʻa antenna a me ke ana kumu a me nā kahua noi.
-
ʻO Conical Dual Polarized Horn Antenna 2-8 GHz Frequency Range, 13 dBi Typ. Loaʻa iā RM-CDPHA28-13
RF MISO'sHoʻohālikeRM-CDPHA28-13 he antenna kiwi polarized ʻelua e hana ana mai2 i 8GHz, Hāʻawi ka antenna13 dBi waiwai maʻamau. ʻO ka antenna VSWR1.5:1 maʻamau. ʻO ka hoʻokaʻawale ʻana o ka antenna cross polarizationmaʻamau 50 dB a he 30 dB ke kaawale awa. Hiki ke hoʻohana nui ʻia i ka ʻike EMI, orientation, reconnaissance, loaʻa antenna a me ke ana kumu a me nā kahua noi.
-

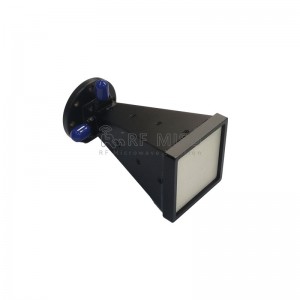

Antenna ʻelua Kiwi Broadband 12 dBi Typ. Loaʻa, 6-24.5GHz Laulā ʻauwaʻa RM-BDPHA6245-12
ʻO ka RM-BDPHA6245-12 he apāluapolarized broadband horn antenna e hana ana ma ke alapine o6GHz i24.5GHz. Hāʻawi ka antenna i kahi waiwai maʻamau o 12dBi a me VSWR haʻahaʻa 1.3:1 me SMA-Fmea hoʻohui. Kākoʻo ka antennapāluanā ʻano nalu polarized. He kūpono ia no nā noi ākea e like me ka hoʻāʻo EMC/EMI, nānā, ʻike kuhikuhi, a me ka loaʻa ʻana o ka antenna a me nā ana kumu.
-

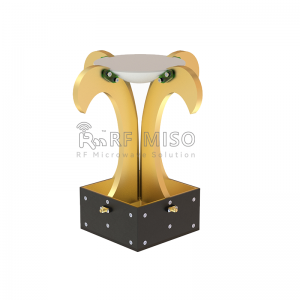

Antenna Kiwi Polarized Broadband 12 dBi Typ. Loaʻa, 0.8-18 GHz Laulā ʻauwaʻa RM-BDPHA0818-12
RF MISO'sHoʻohālikeRM-BDPHA0818-12 he polarized pālua lekiō antenna horn e hana ana mai0.8 to 18 GHz, Hāʻawi ka antenna12 dBi waiwai maʻamau. ʻO ka antenna VSWR maʻamau 1.5:1. ʻO ka antenna RF nā awaSMA-F mea hoʻohui. Hiki ke hoʻohana nui ʻia ka antenna i ka ʻike EMI, orientation, reconnaissance, loaʻa antenna a me ke ana kumu a me nā kahua noi.
________________________________________________________
Ma ka waihona: 5 ʻāpana
-
ʻO Conical Dual Polarized Horn Antenna 12 dBi Type. Loaʻa, 0.8-18GHz Laulā ʻauwaʻa RM-CDPHA0818-12
RF MISO'sHoʻohālikeRM-CDPHA0818-12 he polarized pālua lekiō antenna horn e hana ana mai0.8 i 18GHz, Hāʻawi ka antenna12 dBi waiwai maʻamau. ʻO ka antenna VSWR maʻamau 1.5:1. ʻO ka antenna RF nā awaSMA-KFD mea hoʻohui. Hiki ke hoʻohana nui ʻia i ka ʻike EMI, orientation, reconnaissance, loaʻa antenna a me ke ana kumu a me nā kahua noi.
